• Voltage: permanent - 9-32V DC
• Amp Draw: 0.5 amps @ 12V DC 0.3 amps @ 24V DC


See online catalog for Specifications list and Vehicle Mounting Specifications

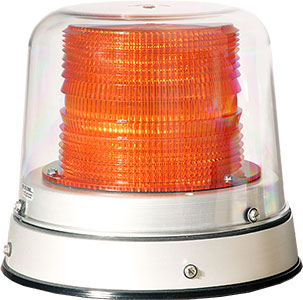

• 200A

Key:

A - Tall lens w/dust cover, plastic bottom base

Approvals:

SAE Class I (A, AC, C)

Replacement Parts:

Outer dome...................................134-LD*
Lens...............................................300-*
Channel gasket..............................111A
Plastic base insert..........................101-AP
Mounting kit..................................S278-6
Gasket...........................................301

 200A & 200S Warning LED Beacon - Manual

 200A Strobe Light - Model Drawings

 200A Warning LED Beacon - Flyer
