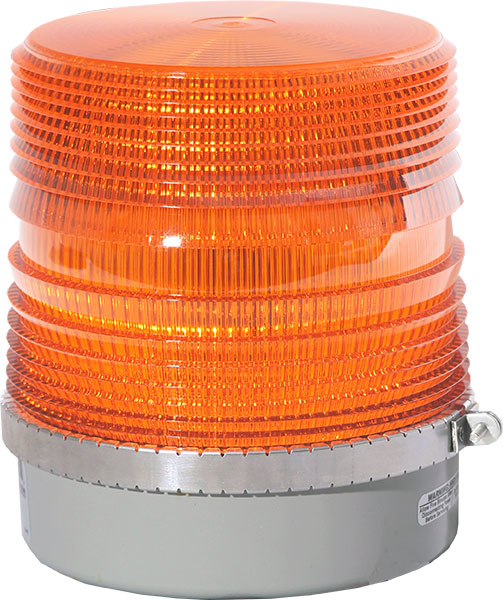

200S Star X-Fire® LED Beacon
Product Code: 200S
Zoom and Alternate Views
- Star X-Fire^® technology
- Twelve different selectable flash patterns in either of two phases, plus Steady-On
- S-Link System™ synchronizing capabilities with other Star LED units, hardwire only
- Extremely low current draw
- Durable polycarbonate lens
- Rugged die-cast aluminum base with powder coated finish

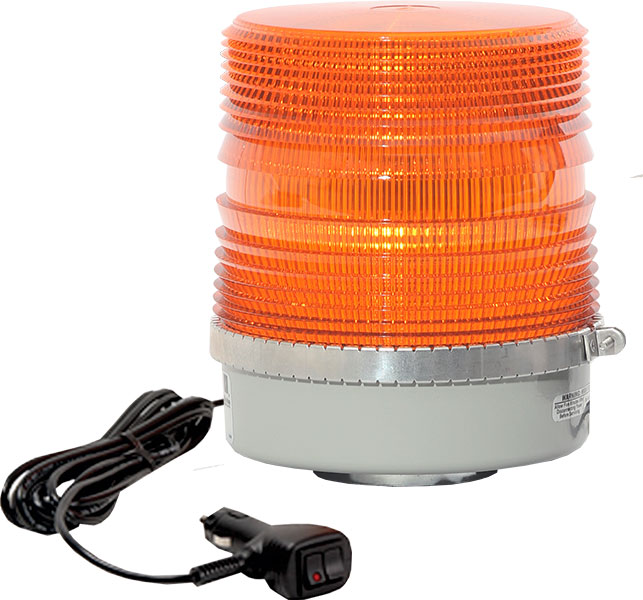

- Universal permanent mount, standard ½” pipe mount, optional magnet mount with cig. plug (On/Off switch and Pattern Select)
- Voltage: permanent - 9-32V DC, magnet - 12V DC
- Amp Draw: 0.5 amps @ 12V DC, 0.3 amps @ 24V DC
See online catalog for Specifications list and Vehicle Mounting Specifications
- 200S
- 200SM
Key:

S - Short lens
M - Magnet mount
Approvals:
SAE Class I (A, AC, C)

Replacement Parts:

Lens...........................................................300-S-*
Cig. plug with lighted on/off switch.........920-PAT20LO-EDGE
Lens gasket................................................369
Base...........................................................4100LF
Clamp ring.................................................365
Magnet kit..................................................177
200A & 200S Warning LED Beacon - Manual

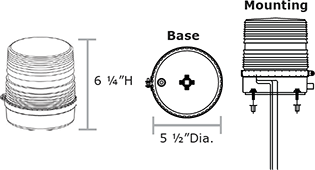

200S Warning LED Beacon Model Drawing

200S Warning LED Beacon - Flyer
