240HL STAR Halo® LED Beacons
Product Code: 240HL
Zoom and Alternate Views
- Star Halo^® Technology is patented (#8,662,702)
- 12 different selectable flash patterns in either of two phases, plus steady-on
- Exceeds SAE Class I J845 standards
- S-Link System™ synchronizing capabilities with other Star LED units
- Fully encapsulated circuitry for weather and shock resistance
- Extremely low current draw
- Durable polycarbonate lens
- Rugged die-cast aluminum base with powder coat finish
- Universal permanent mount, flange mount, standard 1” pipe mount, optional magnet mount with cig. plug (on/off switch and pattern select)
- California Title 13 Available
- Voltage: permanent - 10-30V DC, magnet 10-16V DC
- Amp Draw: 0.6 amps @ 12V DC, 0.3 amps @ 24V DC
See online catalog for Specifications list and Vehicle Mounting Specifications
- 240H8AFL
- 240H8CL
- 240H8SLM
- 240HSGL
- 240HCFL
- 240H8AL
- 240H8CLM
- 240HSL
- 240H8SGL
- 240HCFL-G
- 240H8ALM
- 240H8SFL
- 240HCL
- 240HSLM
- 240H8CFL
- 240H8CFL-G
- 240H8SL
- 240HCLM
- 240HSFL
Key:

A - Tall lens w/dust cover

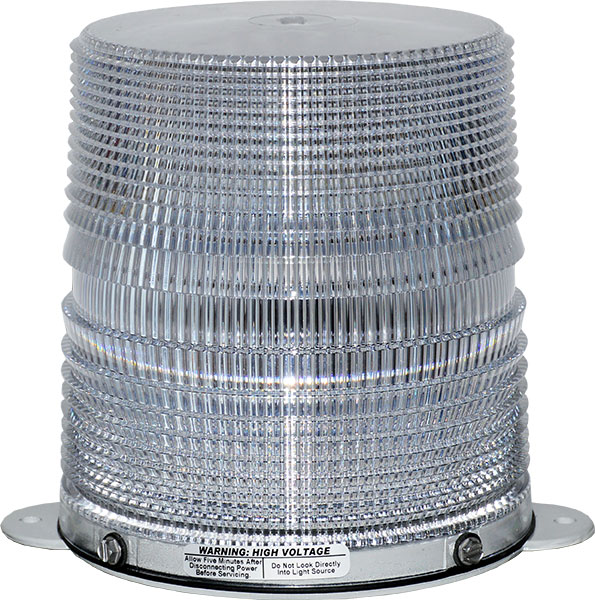

C - Tall lens
F - Flange base 1" pipe mount
-G - Branch guard
G - G plate
H - High intensity 4 LEDs
H8 - Ultra high intensity 8 LEDs
M - Magnet mount

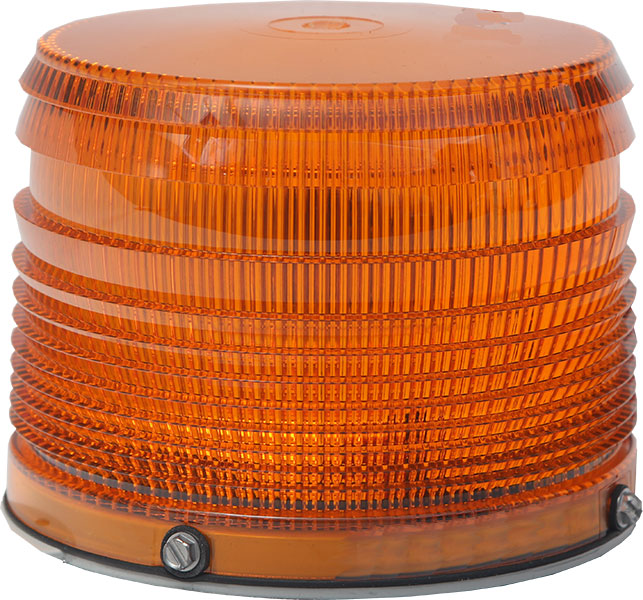

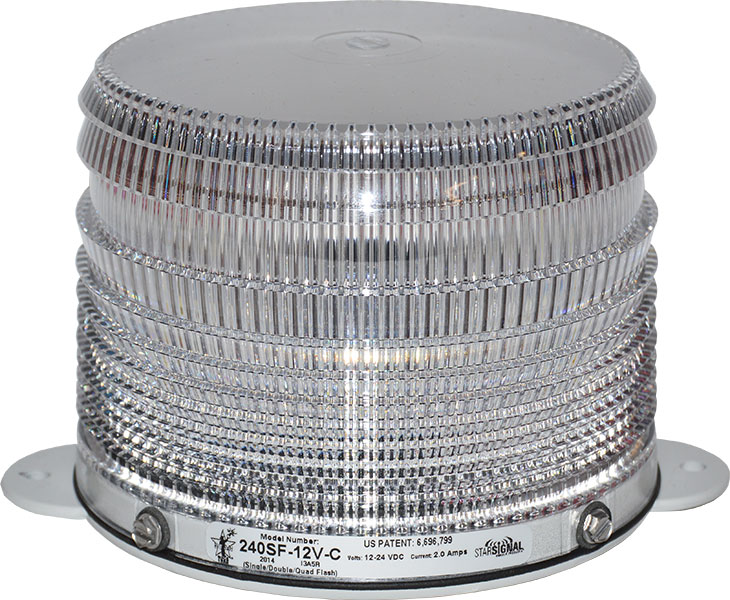

S - Short lens

Replacement Parts:

Lens (240C).....................................................295-*
Lens (240S)......................................................297-*
Magnet kit........................................................177
Cig. plug with on/off switch............................920-PAT20LO
1" pipe insert to make it a 1/2" pipe mount.....P30019-31
200 - 258 Halo LED Lights - Manual

240H8L & 240HL Series LED Beacons - Product Flyer

240HL STAR Halo® LED Beacons Model Drawing
