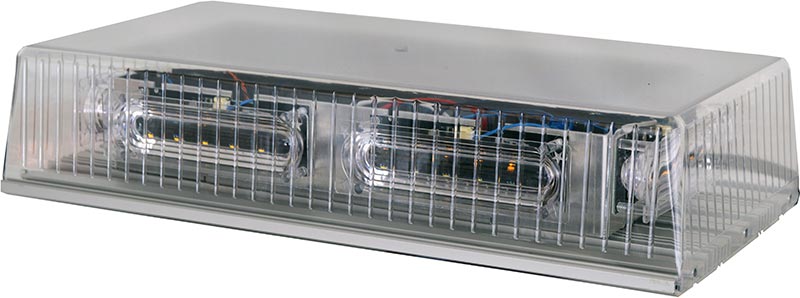

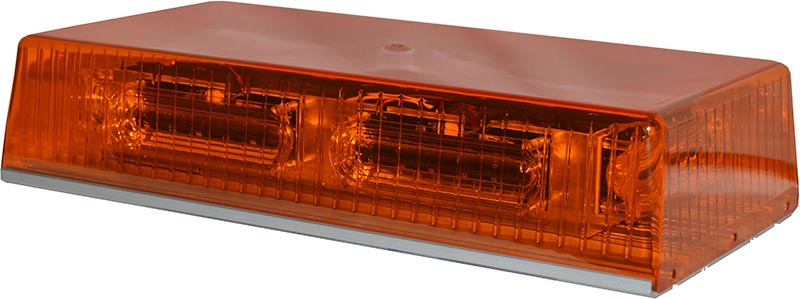

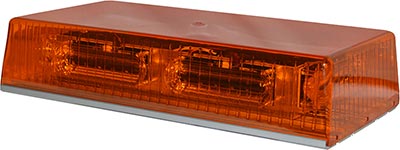

9018LED LED Mini-Bar
Product Code: 9018LED

The Star Omega™ provides all the advantages of an LED warning light with a BIGGER LIGHT image for BIGGER TRUCKS
Zoom and Alternate Views
- Star Lineum™ LED technology
- Star Omega™ provides all the advantages of an LED warning light, with a bigger light image for bigger trucks

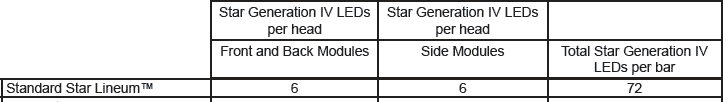

- Single color - Thirty-six Star Generation IV high power LEDs
- Dual-color- one hundred forty-four Star Generation IV high power LEDs
- Dual-Color - (9018DLED) available “go from Amber to Blue with the flip of a switch”
- Single color- 35 customer selectable flash patterns via pattern select wire
- Dual-color- 37 customer selectable flash patterns via pattern select wire
- Durable polycarbonate, injection molded domes are fully gasketed to protect against moisture
- Conformal coated circuitry protects against shock and vibration
- Rugged one piece, extruded, anodized aluminum base
Voltage: 10-16V DC

Amp Draw: 16 (max)

See online catalog for Specifications list and Vehicle Mounting Specifications
- 9018LED -
  Star Omega™ LED mini-bar, color is Left/Right, permanent mount
- 9018LEDV-
  Star Omega™ LED mini-bar, color is Left/Right, vacuum magnet mount
- 9018TBLED -
  Star Omega™ LED mini-bar, color is Top/Bottom, permanent mount
- 9018DLED -
  Star Omega™
  Dual-Color
  LED mini-bar, permanent mount
Key:

D - Dual-Color
TB - Top/Bottom

Replacement Parts:

Dome....................P154LP-*
Dome gasket........30047-64
9018DLED Dual Colored Ultra-High Intensity Minibar - Manual

9018LED Ultra-High Intensity Minibar - Manual

9018LED Mini-Bar - Product Flyer

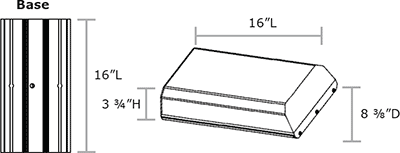

9018LED LED Mini-Bar Model Drawing
