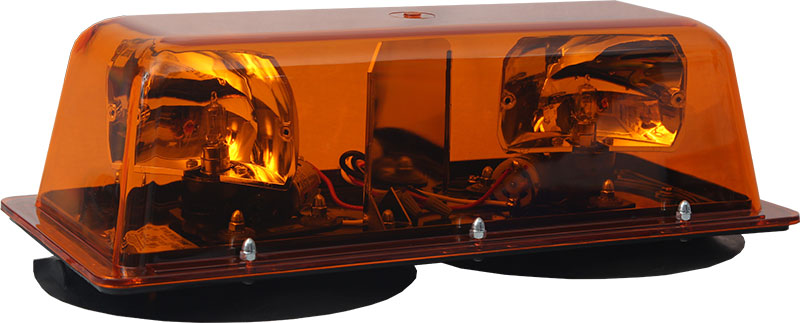

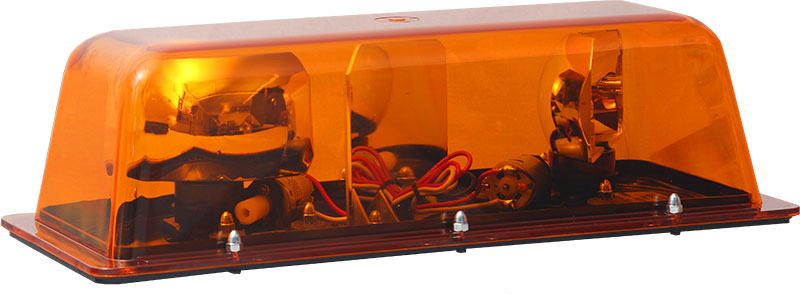

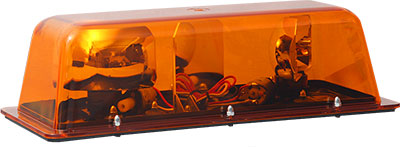

9200H Halogen Mini-Bar
Product Code: 9200H
Zoom and Alternate Views
- Durable polycarbonate lens
- Gasket between lens and base, ABS plastic base
- Patented shock mounted rotators with two sealed roller bearings (bearing mechanism - maintenance free)
- 50 watt halogen bulb (795 type)
- Sturdy and lightweight - will not corrode!
- Provides quiet, smooth operation and ensures long rotator and bulb life
- No belts to replace or spindle hubs to grease
- Long life with lock in/stay in feature
- Field repairable
- Standard rotator - 80 fpm (+/- 10) per rotator
- High speed rotator - 160 fpm (+/- 10) per rotator
Voltage: 12V DC (24V DC available)

Amp Draw: 8 amps @ 12V DC

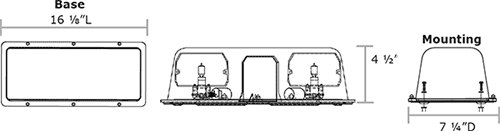

See online catalog for Specifications list and Vehicle Mounting Specifications
- 9200H
- 9200HM
- 9200HV
Key:

H - Halogen
M - Magnet mount
V - Vacuum magnet mount

Replacement Parts:

Outer dome.........................................................920-3-*
Color filter for rotator.........................................920-100-*
Halogen bulb......................................................2073-795X
Standard rotator assembly with motor................920-0
High speed rotator assembly with motor............920-0F
Rotator motor......................................................920-5
Wall mirror..........................................................920-30-3
Cig. plug..............................................................920-10
Magnet (one).......................................................920-16
Magnet mount kit................................................920-16-4K
Vacuum magnet (one).........................................920-14V
9200H, 9200I, 9200S & 9200Z Star Mini-Bar - Manaul
