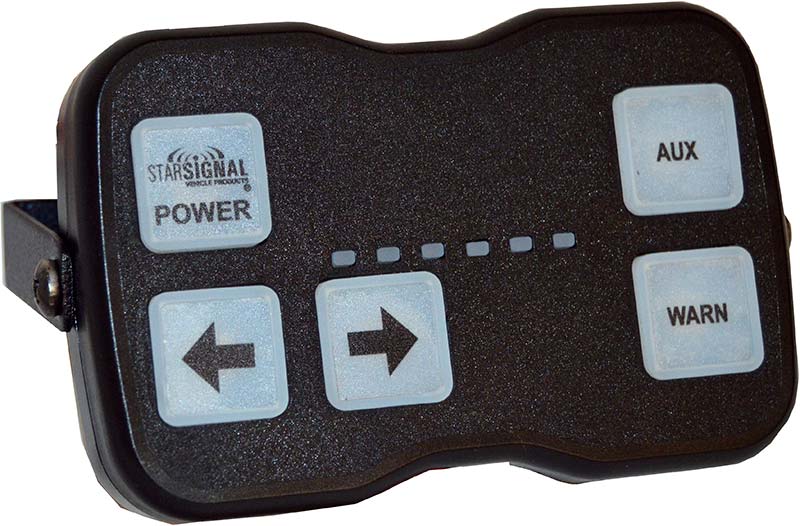

SB44-5 - Traffic Director Controller
- 5-button Traffic Director controller with auxiliary switch
- Built-in LED display mimics Traffic Director output
- Red backlit silicone rubber keypad with 14 programmable brightness settings
- Option to program as a 4-output switchbox
- Durable polycarbonate housing
- Hardwired 11" pigtail
- Includes aluminum U-bracket (274-SB44-U) and stainless steel hardware for versatile mounting
- Includes replaceable velvet finish Lexan™ button labels

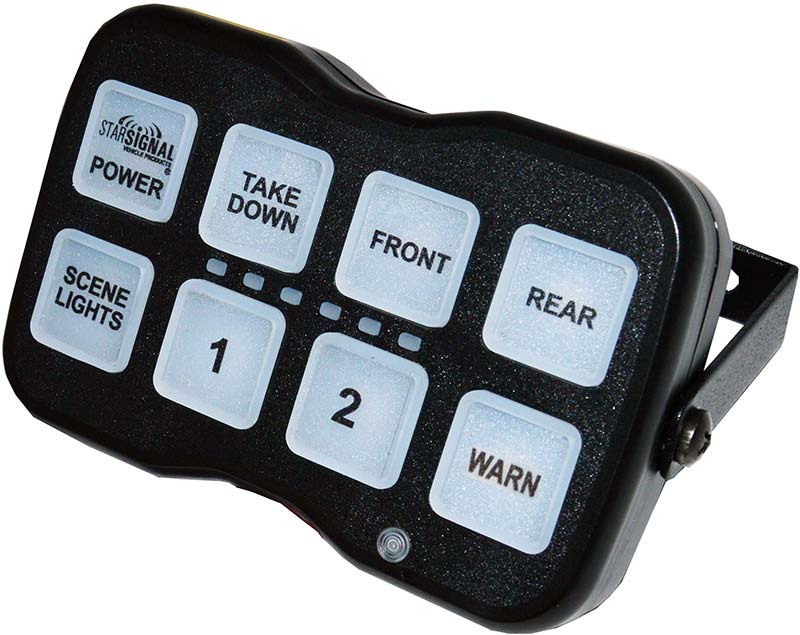

SB44-8 - Advanced Programmable Switchbox
- 8-button control panel for operating up to 8 lights/devices
- Red backlit silicone rubber keypad with 14 programmable brightness settings
- Programmable switching options: Ground-side switching, Momentary switching, Normally Closed, Flashing Output with Phase settings, and Audio feedback
- Option to program as a stand-alone Traffic Director Controller for logic-controlled sticks
- Smartphone Programmable
- Durable polycarbonate housing
- Includes 12-pin wire harness to simplify installation
- Includes aluminum U-bracket (274-SB44-U) and stainless steel hardware for versatile mounting
- Includes replaceable velvet finish Lexan™ button labels
- Phone App Patent US 11,050,488 B1
- Dimensions: 2 5/8"H x 4 1/8 "W x ½"D
- Operating range: 9-16V DC
- Operating temperature range: -40°F to 131°F
- 6 outputs at 2.5A average (5 A peak)
- 2 outputs at 0.06A average
- SB44-8 Programmable switchbox, 8 buttons, U-bracket included
- SB44-5 Programmable switchbox, 5 buttons, U-Bracket included

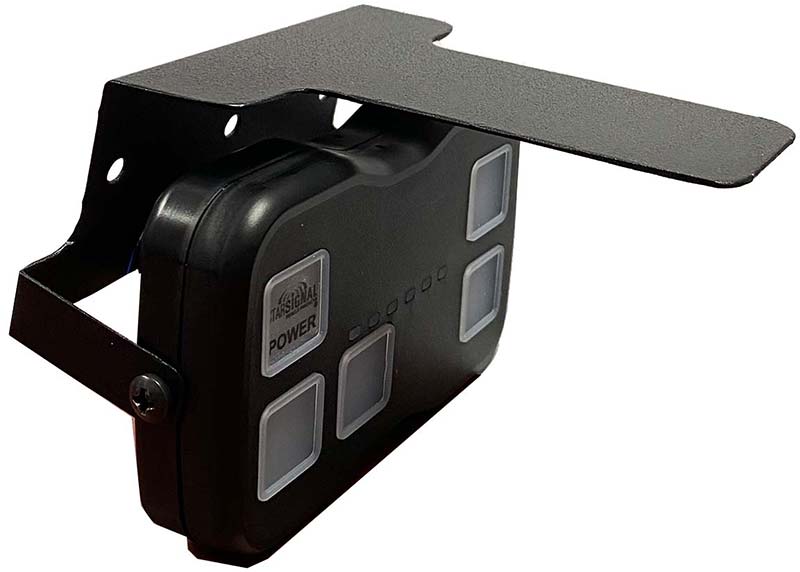

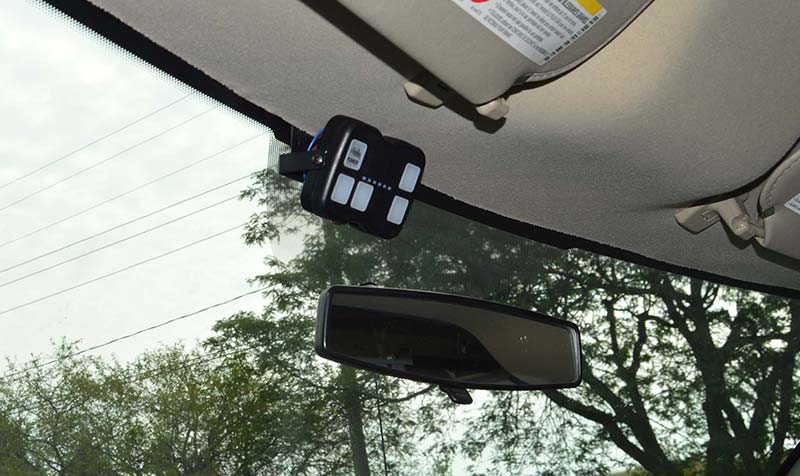

- 274-SB44-H Headliner Bracket

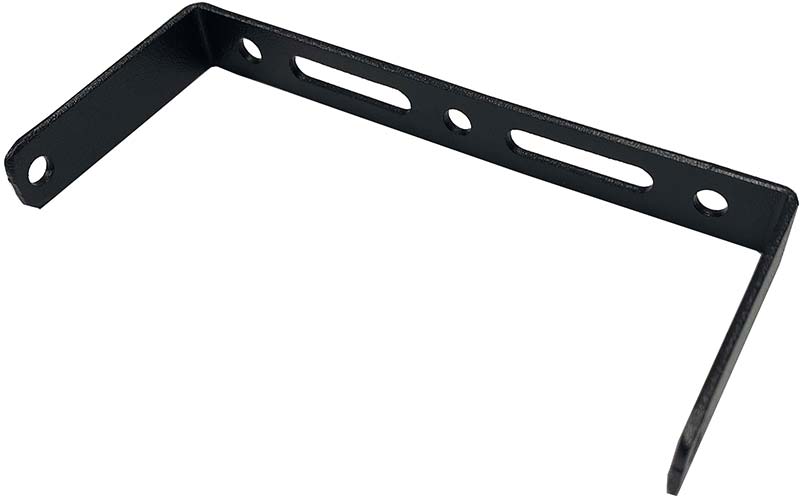

- 274-SB44-U U-Bracket
- 274-SB44-ULP Low profile U-Bracket
- 274-SB44-VC Visor Clip Bracket
SB44 Advanced Programmable Switchbox & Traffic Director Controller - Product Flyer
