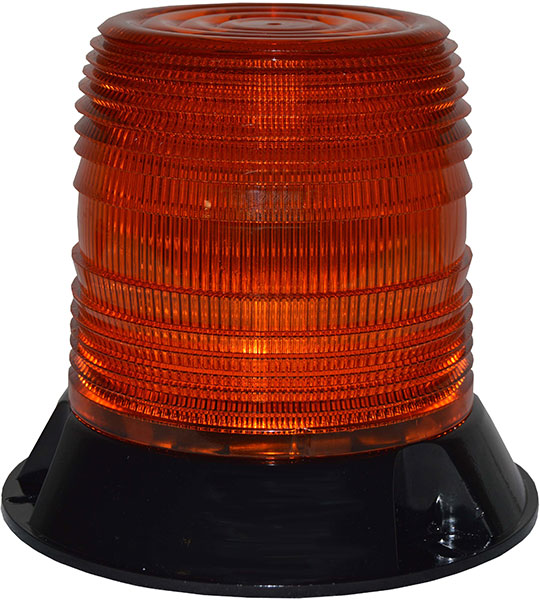

281R Star X-Fire® LED Beacon
Product Code: 281R
Zoom and Alternate Views
- Star X-Fire^® technology
- Twelve different selectable flash patterns in either of two phases, plus Steady-On
- Durable polycarbonate lens
- Lightweight, polycarbonate base

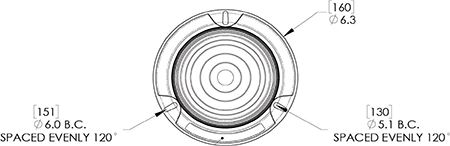

- Three bolt permanent mount, 12mm single bolt, magnet mount, Din and Flexi-Din mount available
- Slotted mounting hole accommodate SAE and 3 bolt DIN mount
- S-Link System™ synchronizing capabilities (on the 281 model only) with other Star LED units
- Sync. to alternating or simultaneous flash
- Dimensions: 144mm (6 43/64”) H x 152mm (6”) Dia.
- Voltage: perm. mount 9-32V DC, mag. mount - 9-16V DC
- Amp draw: 0.5 amps
- Weight: 1.36 k
Approvals:
SAE Class I (A) SAE Class II (B, C, R)
REG 10 (All colors)
- 281R - Three hole mount, selectable flash pattern, sync. includes rotating pattern

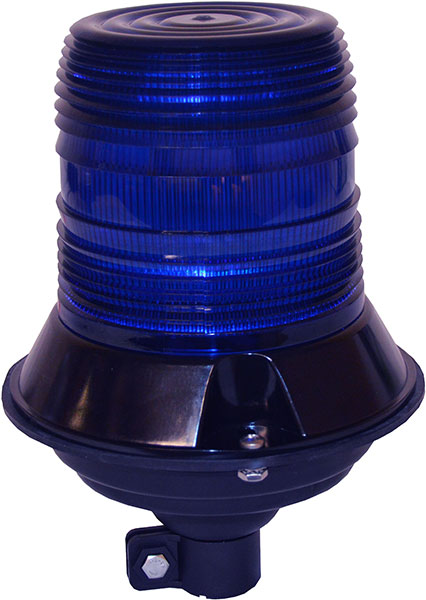

- 281RFP - Flexi-DIN mount with CCW rotating pattern only
- 281RM - Rotating pattern only, magnet mount

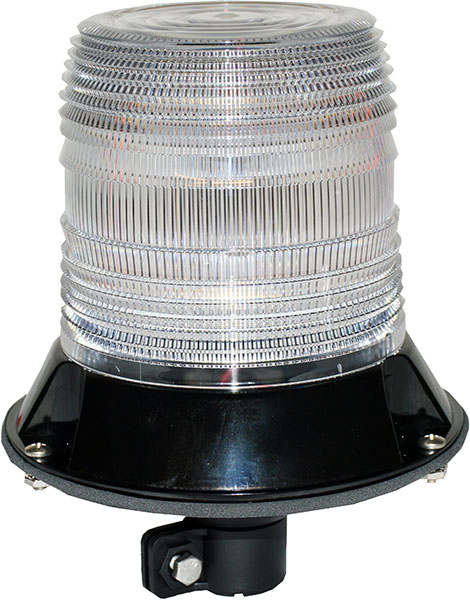

- 281RP - DIN mount, slow rotating pattern only
Replacement Parts:
Lens ....................................P399*
Magnet mount kit................177-3
O-ring gasket.......................P30047-8
Vacuum magnet mount....... 920-16V
Cig plug (281M)..................920-PAT20LO-EDGE
Cig plug (281RM)...............S176-SWNL-EDGE
281 Series LED Lights - Manual

281 Series LED Lights - Product Flyer

281B LED Lights - Model Drawing

281DIN LED Lights - Model Drawing

281FDIN LED Lights - Model Drawing

281M LED Lights - Model Drawing

281 LED Lights - Model Drawing

281P-R Series LED Lights - Manual

281R Series LED Lights - Manual
