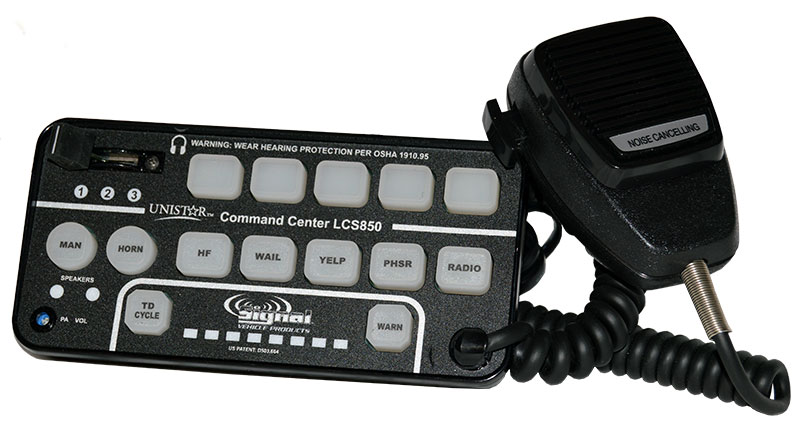

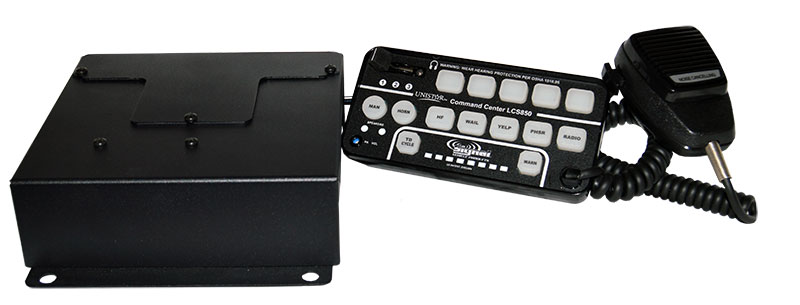

LCS800 & LCS850 Unistar™ Command Center
Product Code: LCS800, LCS850
Zoom and Alternate Views
- LED speaker diagnostics
- Wail, Yelp, Airhorn, Phaser, Manual, and Two Tone
- Self-resetting circuit protection against speaker shorts
- Integrated public address microphone
- Eight light functions
- Dual color backlighting on keypad (Amber & Red)
- Four position progressive slide switch with LED indicators
- Park Kill input
- Auxiliary input
- Positive locking wiring harness included
- Universal mounting bracket or Flange mount available
- Replaceable jumpers for option selection
- Positive and negative switching for AUX and PKILL inputs
- High and Low voltage shutdown protection
- Truck mount amplifier
- 30 Standard function replaceable labels
- Drives one or two 100 Watt speakers
- Size:
  - Control head with flange : 4 11/64"H X 7 11/16"W X 7/8"D - Control head with out flange: 3 3/16" H X 6 11/16"W X 7/8"D
  - Amplifier: 2 1/2"H X 7"W X 7 3/8"D (plus 3/4" flange)
- Weight:
  - LCS800 & LCS800-F (with flange) - 8.5 lbs.
  - LCS850 & LCS850-F (with flange) - 9.5 lbs.
- Output: 100 or 200 Watts (1 or 2 speakers)
- Voltage: 10-16V DC
- Frequency: 675-1633Hz
- Amp Draw: 8 Amps (per speaker)
- Approval: Exceeds Acoustical and environmental requirements of SAE J1849*, California Title 13 Class A* (* when used with SVP drivers)
- LCS800-F
- LCS800
- LCS850-F
- LCS850
LCS800-008 & LCS850-8 UNI-STAR Command Center Siren Amplifier & Light Controller - Manual

LCS800-850 Siren - Product Flyer

Alert

Horn

Manual

Phaser

Two Tone

Wail

Yelp
