- Self-contained, LED flashing circuitry
- 11 different alternating patterns, 4 different simultaneous patterns in each of the two phases
- S-Link System™ synchronizing capabilities with other Star LED units
- Optics, boost and concentrate light for maximum LED output
- Easily replace standard hide-a-way remote strobe tubes with 1” mount holes
- Nickel plated aluminum housings allow for our advanced thermal heat management
- Customer changeable colored lenses (with white kit only), giving these LED lights versatility in the field
- Spherical LED heads are designed with diffusing optics for extremely wide angle light
- LED heads are designed with diffusing optics for extremely wide angle light
Some colors may not be available check with customer service for availability
- Voltage: 12-24V DC
- Amp Draw: 0.5 amps per head (max)

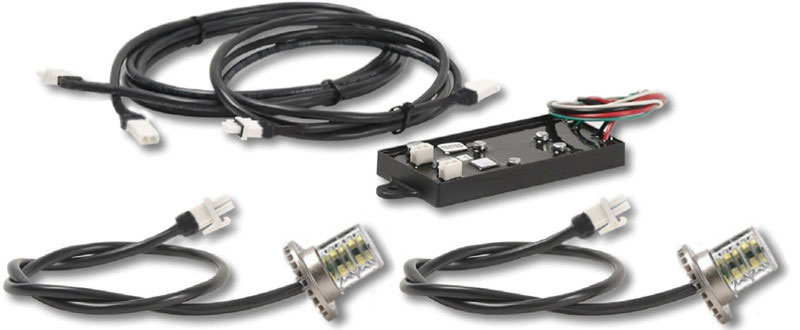

- LDK302 Two head kit includes: 1 - Flasher module, 1 - 4’ cable with attached connectors, 1 - 8’ cable with attached connectors, and
2 - LED head assemblies with 2’ leads and attached connectors
- LDK304 Four head kit includes: 2 - Flasher modules, 2 - 4’ cables with attached connectors, 2 - 8’ cables with attached connectors,
and 4 - LED head assemblies with 2’ leads and attached connectors
- LDK312 Two head kit includes: 1 - Flasher module, 1 - 4’ cable with attached connectors, 1 - 8’ cable with attached connectors, and
2 - LED spherical head assemblies with 2’ leads and attached connectors
- LDK314 Four head kit includes: 2 - Flasher modules, 2 - 4’ cables with attached connectors, 2 - 8’ cables with attached connectors,
and 4 - LED spherical head assemblies with 2’ leads and attached connectors
Replacement Parts:
Two output remote LED flasher..................................LDF300
Replacement head with connector...............................LDH300C-*
Spherical replacement head with connector................SLDH310C
4' Extension cable for LED heads...............................SWH-L4
8' Extension cable for LED heads...............................SWH-L8
15' Extension cable for LED heads.............................SWH-L15
20' Extension cable for LED heads.............................SWH-L20
25' Extension cable for LED heads.............................SWH-L25
30' Extension cable for LED heads.............................SWH-L30
35' Extension cable for LED heads.............................SWH-L35
Three color lens kit for spherical heads......................P30129-50K
Single color lens kit for spherical heads.....................P30129-50*
Three color lens kit for directional heads...................P30129-47K
Single color lens for directional.................................P30129-47-*
