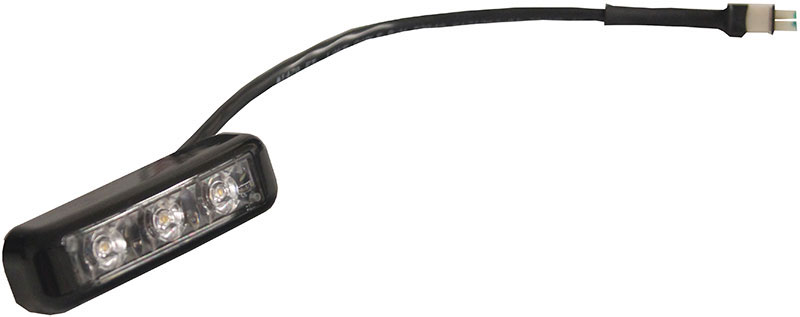

• High intensity Star Generation IV LEDs
• 12 customer selectable fl ash patterns in either of two phases, plus steady-on
• Fully encapsulated circuitry within housing for vibration and water protection
• S-Link System™ synchronizing capability with other Star LED units
• Interior/exterior mount
• Designed for fl ush or bracket mounting
• Versa Star® optional mounting brackets also available
• Includes 6” cable and connector

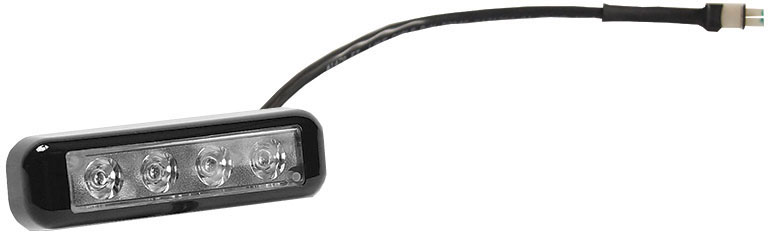

• Colors available: DLX3 - A, R, B, W DLX4, DLX6F - AA, AW, BB, RR, RB, RW, WW, AR, AB, BW

• Six Star Generation IV LEDs
• 12 diff erent selectable fl ash patterns in either of two phases, plus steady-on Fully encapsulated circuitry within housing for vibration and water protection
• S-Link System™ synchronizing capability with other Star LED units
• Interior/exterior mount

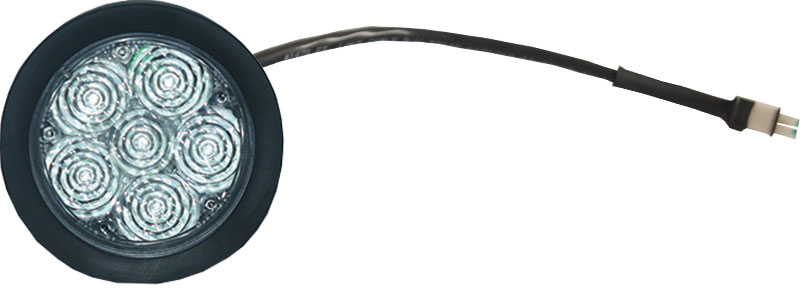

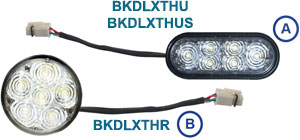

• Trapezoidal optics only for BKDLXTHR
• Includes 6” cable and connector
• Colors available: A, Blue with Clear lens, Red with Clear lens, W (DLXTHUS - AG, AW)

• • Three super bright Star Generation V LEDs
• 12 diff erent selectable fl ash patterns in either of two phases, plus steady on (only 13 customer selectable fl ash patterns if you have one DLIT light) • Includes 6” cable and connector
• S-Link System™ synchronizing capabilities with other Star LED units
• Voltage: 10-16V DC
• Colors available: A, B, G, R, C

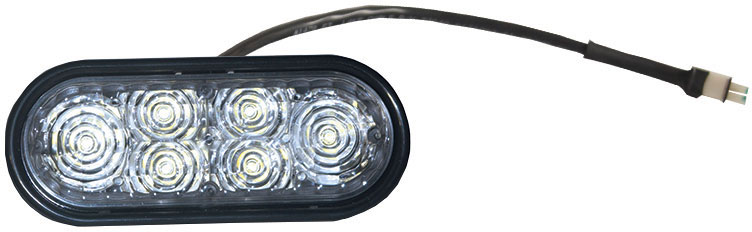

• Six super bright Star Generation VI LEDs
• 25 customer selectable flash patterns, including steady-on
• Includes 6” cable and connector
• New and improved S-Link
• Voltage: 10-30V DC
• Colors available: AA, AW, BB, RR, RB, RW, WW

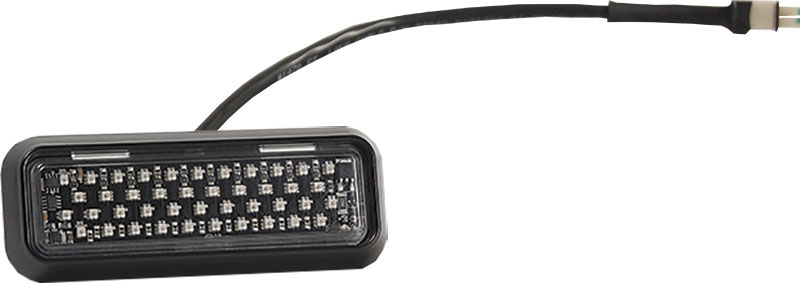

• High intensity PLCC4 LEDs
• Circuitry is fully encapsulated within housing for vibration and water protection
• 21 customer selectable flash patterns including steady-on
• S-Link System™ synchronizing capabilities with other Star LED units
• Interior or exterior mount
• Includes 6” cable and connector
• Colors available: AA, AW, BB, RR, WW, RW


• Omni-directional, mounts in any direction
• Three high intensity Star Generation IV LEDs
• 25 customer selectable flash patterns including steady-on
• Circuitry is fully encapsulated within housing for vibration and water protection
• S-Link System™ synchronizing capabilities with other Star LED units
• Includes 6” cable and connector
• Interior/exterior mount
• Colors available: AA, AW, BB, RR, RB, RW, WW

• M-Tech Plus® LED technology that provides a superior 360° warning light image
• 20 customer select flash patterns
• S-Link System™ synchronizing capability with other Star LED units
• Exterior mount
• Can only use BKSWH-357 cable with this model
• Includes 30” cable and connector
• Customer can remove dome to change pattern
• Colors available: AA, AW, WW

• Super bright M-Tech Plus® LED technology that provides a superior warning light image
• S-Link System™ synchronizing capability with other Star LED units
• Exterior mount • Includes 30” cable and connector
• Can only use BKSWH-357 cable with this model
• Shipped in quad flash mode unless otherwise specified
• Colors available: AA, AW, WW

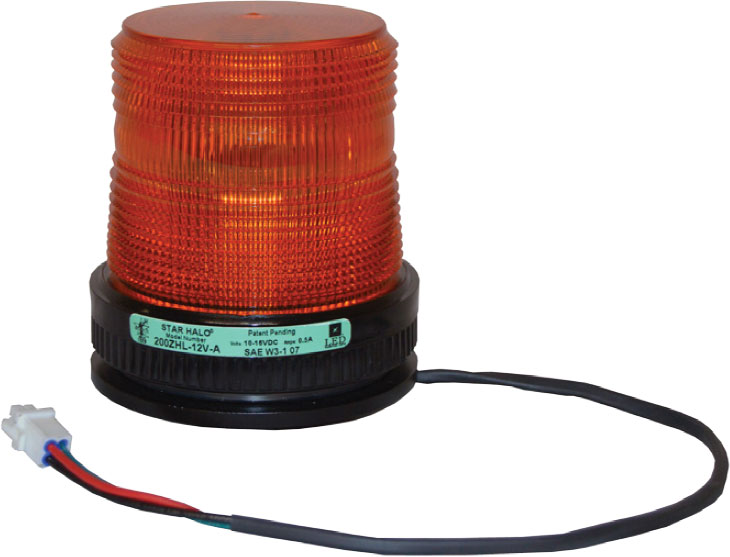

• 4 LED Star Halo® rotating version
• 12 customer selectable flash patterns, including steady-on
• Durable polycarbonate, twist on/off lens
• Heavy die cast base
• Voltage: 12-24V DC
• Includes 18” cable and connector
• Colors available: A


• Six Star Generation IV LEDs
• 24 customer selectable flash patterns, including steady-on
• Circuitry is fully encapsulated within housing for vibration and water protection
• S-Link System™ synchronizing capabilities with other Star LED units
• Lightweight polycarbonate, universal, flange base: three-hole permanent mount, 1” pipe mount
• Includes 18” cable and connector
• Colors available: A, B

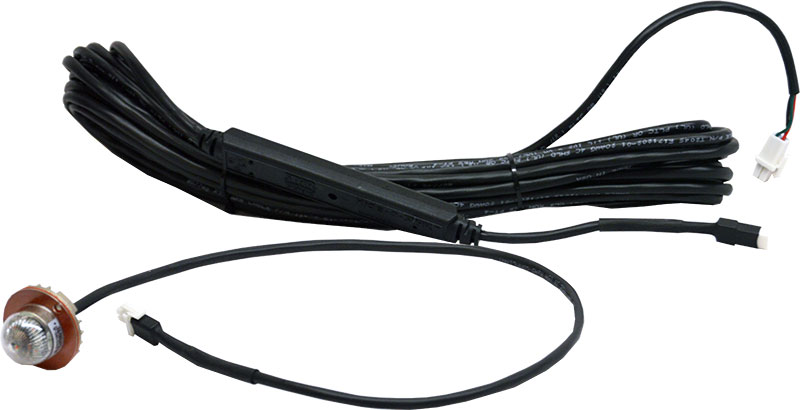

• LED heads easily replace standard hide-a-way remote strobe tubes (1” mounting holes)
• Spherical LED heads are designed with diffusing optics for extremely wide angle light output
• 25 customer selectable flash patterns, including steady-on
• Circuitry is fully encapsulated within housing for vibration and water protection
• Customer changeable colored lenses
• Advanced thermal heat management
• Nickel aluminum housing
• Includes 18” head side cable and 10’ cable with connector
• S-Link System™ synchronizing capability with other Star LED units
• Colors available: A, B, R, W


• Connector board for the Star Constellation™

• Pattern select on BKLD418-2 controller does not control patterns within mini-bars

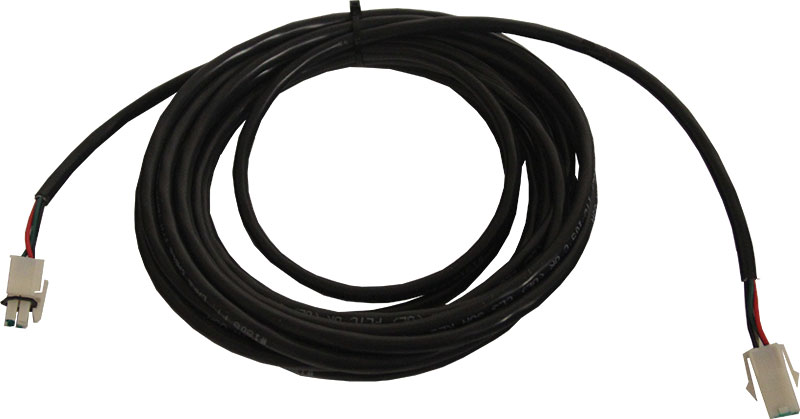

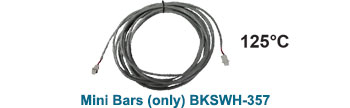

• BKSWH-357-18 18’ cable
• BKSWH-357-23 23’ cable

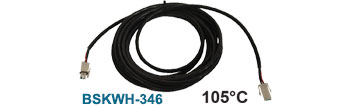

• BKSWH-346-5 5’ cable
• BKSWH-346-10 10’ cable
• BKSWH-346-18 18’ cable
• BKSWH-346-19 19’ cable
• BKSWH-346-23 23’ cable
• BKSWH-346-24 24” cable

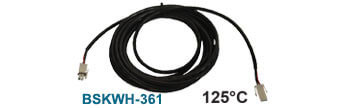

• BKSWH-361-10 10’ cable
• BKSWH-361-14 14’ cable
• BKSWH-361-16 16’ cable
• BKSWH-361-18 18’ cable
• BKSWH-361-21 21’ cable
• BKSWH-361-23 23’ cable
• BKSWH-361-25 25’ cable

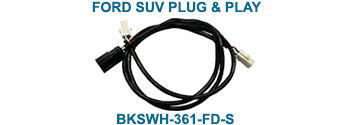

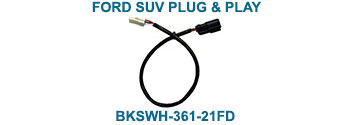

• These harnesses are designed to allow the connection of your Star Constellation™ series lights, directly to the optional Ford installed Police Package wiring harness

Two options

• Single head harness
• Dual head harness
