- Ability to run at 100 or 200 watts for extended periods of time
- LED speaker diagnostics allow quick troubleshooting
- Push button on the back and two dip switches allow the user to customize the unit

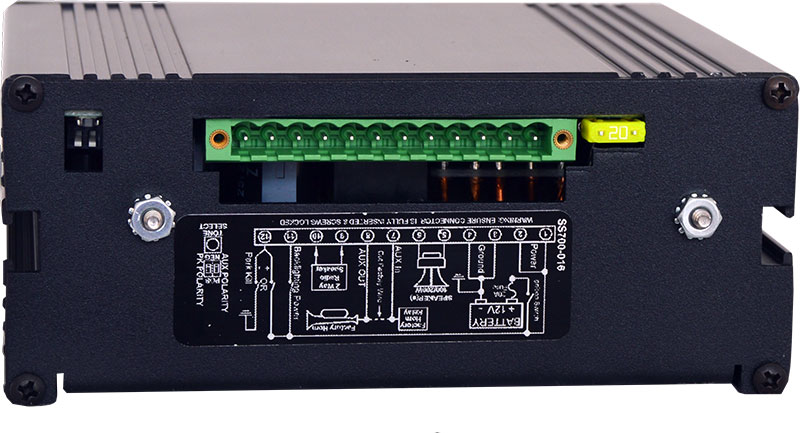

- New connector requires no special terminals making it easy to retrofit any old siren harness install with only wire strippers and screw driver
- 24 Programmable siren tones including:
- 2 approved yelp tones
- Simulated mechanical wail & manual
- 8 Air horn tones
- 7 position rotary function knob
- Wail, Yelp, Air Horn, Phaser, Manual, and Two-Tone
- Intergrated PA mic, volume adjustable from the front
- Self-resetting circuit protection against speaker shorts
- Built in fuse
- Combined on/off switch & PA volume knob
- Two-way radio rebroadcast volume adjustable from front of siren
- Diagnostics LED
- Positive and negative switching for Aux and PKILL inputs
- Horn ring transfer relay built in
- Aux can be used to enable siren/horn tone or for hands free tone cycling
- Reverse polarity protection
- High and low voltage shutdown protection
- Ships complete with positive locking connector, mic clip, mounting bracket, hardware, and instructions
- Dimensions: 2 3/8”H x 6”W x 5 13/16”D
- Weight: 6 lbs.
- Output: 100 or 200 watts (1or 2 speakers)
- Voltage: 10-16V DC (24V available)
- Frequency: 675-1633Hz
- Amp draw: 8 amps (per speaker)
- Stand-by current switch off: 0.004A
- Approvals: Exceeds Acoustical and environmental requirements of SAE J1849*, CA Title 13 Class A* (when used with SVP drivers and approved tones)
SS700-016 Siren REV J - Manual
SS700-013 Siren REV I - Manual
SS700 Siren - Product Flyer
Two Tone
Yelp
Manual
Phaser
Wail
Horn
Air Horn and Yelp
Air Horn II
Continuous Beep
Continuous Tone
Double Post Pop Air
Ghost
Hoot
LF Air Horn
Manual No Run Down
Max Yelp
Mech Manual Rundown
Mech Wail
Rapid Ghost
Rapid AH
Rapid Hoot
Single AH
Single Quick AH
Standard Air Horn
TT AH
