  • SS867 & LCS869 Remote Mounts


    Product Code: SS867, LCS869
    California P65 Cancer Warnging
    SS867 & LCS869 Remote Mounts
    Zoom and Alternate Views
    • Mi-Control™ series are ideal in situations where  the need for high performance features meet limited space
    • Mini-Siren controllers are compact yet packed with useful features that will satisfy technical enthusiasts

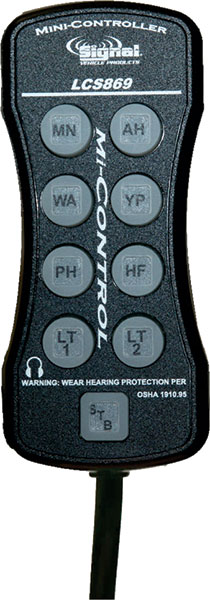

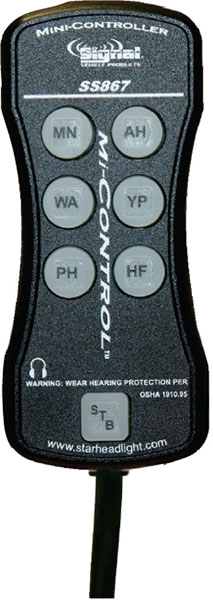

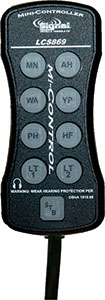

    • Choose the Mi-Control™ SS867 for full feature siren control or Mi-Control™ LCS869 for full feature light and siren control combination

    Siren Features

    • Four air horn tones
    • Twenty-one siren tones, including simulated mechanical and manual wail
    • Auxiliary horn input (positive or negative input)
    • ”Hands Free” three tone cycle (Tone 1, Tone 2, Tone 3, Off)
    • Programmable air horn tones only mode (locks out siren tones)

    General Features

    • Over voltage, under voltage, speaker short protection and visual feedback
    • Forty-nine changeable button labels
    • All buttons back lit by green-off/red-on LEDs
    • Dimmable button light intensity
    • Audio feedback for pressed buttons (adjustable volume)
    • All Off/Stand-by button

    Lighting Features (LCS869 only)

    • Four functionality options: 8 second timer (aka gun clock), momentary, normally closed, or standard (push on/push off)
    • Two outputs (30 amps max total for system)

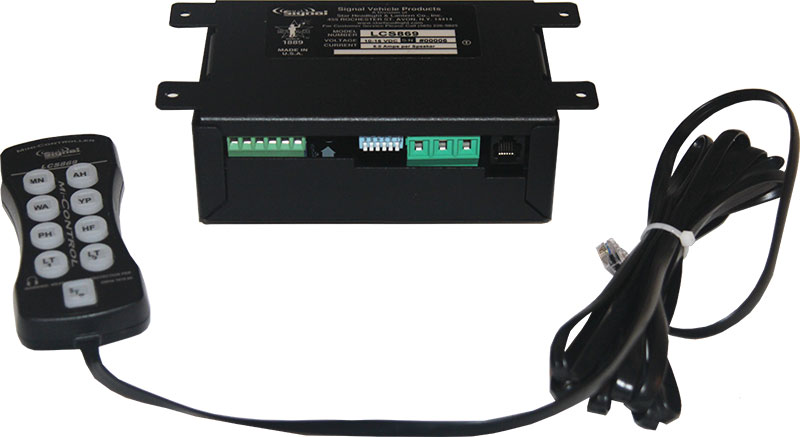

    Kit Includes

    • Amplifier box
    • Control head with 10’ of attached cable
    • Forty-nine changeable button labels
    • Instructions
    • Velcro™ for optional dash mounting




    • Weight: 2.25lbs
    • Voltage: 10-16 VDC
    • Current: 8 amps audio
    • Lighting: 30A Max
    • Amp: 2”H x 5-1/2”W x 3-3/4”D
    • Control Head: 3/4”H x 2”W x 4-3/4”D
    • BCK-30008-22 25' extension cable kit
    • Approvals: Exceeds Acoustical requirements of SAE J1849*, California Title 13 Class A* (* when used with SVP drivers and approved tones)

    • SS867
    • LCS869
