- High-intensity, Dual-color LED auxiliary light
- Ultra Thin profile bezel mount
- Dual-Color twelve super bright Star Generation VLEDs
- 12 different selectable flash patterns in either of two phases
- Programmable full Steady Burn or Cruise Mode for any color(s)
- Two independent enable lines, one for each color
- Programmable options for each enable line include pattern, phase, steady burn
- Can be controlled by an external flasher, acting as a dummy head
- Current limit protection over entire operating voltage

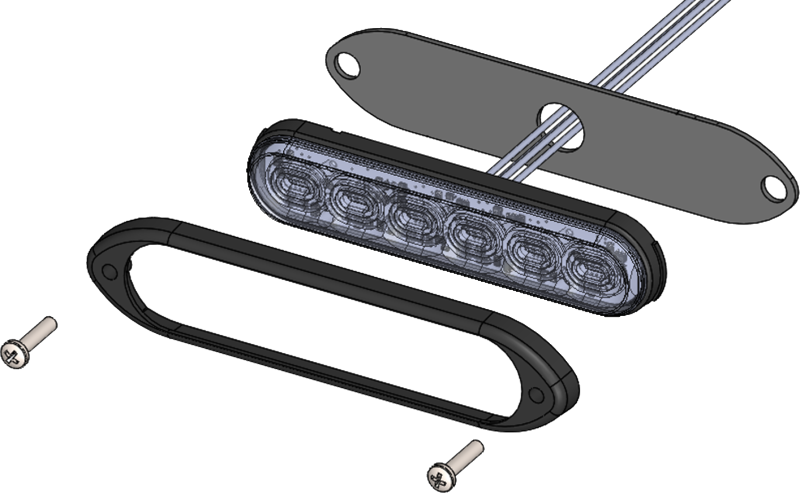

- New base w/o mounting ears allows sealed light to be independent from mounting stress forces by “floating” under mounting bezel
- Ultrasonic weld fuses lens to plastic base providing maximum weather tight seal
- S-Link System 2.0™ synchronizing capabilities with other Star LED units (up to 10 units)

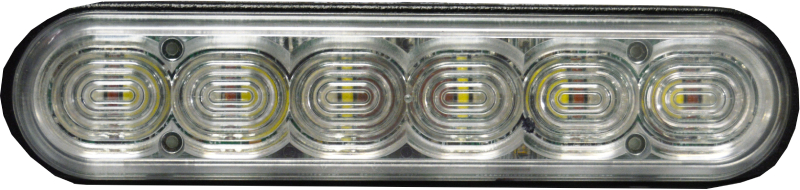

DLITDC Micro-Star™
Dimensions: 1”H x 4 5/ 16”W x 7/ 16”D
Voltage: 10-16V DC
Amp draw: 0.2 amps
Approvals: SAE Class I, available where applicable
*approvals only apply when properly configured
IPx7 water protection
DLITDC-** Dual-color twelve LED head
274-DLIT-RL License plate bracket for two DLIT’s
274-DLIT-RT Adhesive bracket for DLIT’s
274-DLIT-LPB4 License plate bracket for four DLIT’s
274-DLIT-45 45 Degree bracket for DLIT’s
274-DLIT-U Universal bracket for DLIT’s
274-DLIT-W Window adhesive bracket for DLIT’s
30019-314 Shim Kit
S30019-320 Reverse Bezel mount
