- Weatherproof interior or exterior mount
- 36 customer selectable warning flash patterns plus 5 phase options
- 10 traffic director patterns (6 and 8 head versions only)
- DLQSMC-6 (8) comes with a 25’ six wire cable, Default configuration: (flashing color 1, flashing color 2, pattern select, cruise, left, right) Note: enable left & right for center out
- DLQSMC-4 12 customer selectable warning flash patterns plus 4 phase options
- DLQSMC-4 8” four wires, Default configuration: (Flashing Color 1, Steady Color 2, Pattern Select)
- DLQSMC-4 Reprogrammable Enables: Cruise, Takedown, Flashing Color 1, Flashing Color 2, Flashing
Colors 1 and 2 Full, or Flashing Colors 1 and 2 every other head - Bottom and rear T-slots allow for easy mounting via industry standard #10 carriage bolt
- Front load assembly design allows quick and easy swap of heads
- Built-in Traffic Director function available (six head and eight head models only)
- Sealed DLIT heads for maximum reliability
- Shipped standard with L-brackets
- Dual Warn option (8 head module only): Programmable to allow the end heads to flash a warning pattern, while the center 6 heads flash a traffic director
pattern
- Enables are Programmable for Cruise, Steady burn, or Flashing
- Ideal for front push bumpers, rear SUV or pickup truck windows, headache rack, and running board lights
- Color Combinations for each head:
- Dimensions:
- (DLQSMC-4) 20 ½” L x 1 15/32” W x 1 3/16” H
- (DLQSMC-6) 30 39/64” L x 1 15/32” W x 1 3/16” H
- (DLQSMC-8) 40 39/64” L x 1 15/32” W x 1 3/16” H
- Voltage: 10-16V DC
- Amp draw: 2 amps average (4 head) 3 amps average (6 head) 4 amps average (8 head)
- Approvals: SAE Class I (A,B,C,R)

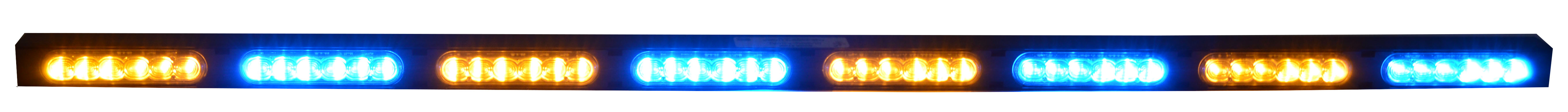

- DLQSMC-4 20.5” Four LED heads, with 8" wire leads
- DLQSMC-6 30.6” Six LED heads, with traffic director function
- DLQSMC-8 40.6” Eight LED heads, with traffic director function
DLQSMC Multi Color Quick Stick - Product Flyer
