- Ultra thin profile only 0.6” thick
- Tri-Color thirty six super bright Star LEDs (Tri-color)
- Twenty different selectable flash patterns
- Auxiliary Stop/Tail/Turn or Back-up
- Built in ambient light sensor for optional Auto Dim
- Programmable steady burn mode for any color(s), Steady burn functions can be pulse width modulated “PWM” between 85 & 400Hz or flashed without modulation by a external flasher
- Current limit protection over entire operating voltage
- Four independent enable lines
- Programmable options include pattern, phase, multi-color activation, steady burn, and cruise
- Easily programmed with either an Android or iPhone smartphone using our downloadable app or by using the included wires
- S-Link System 2.0™ synchronizing capabilities with other Star LED units (up to 10 units)
- Flush mount bezel or rubber grommet mount
- Optional chrome available
- Phone App Patent US 11,050,488 B1
Tri Color:
Dementions: 4.4” Dia.X 0.6” D round, 6.5” H x 2.3” W X 0.6” D
- Voltage: 9-32V DC
- Amp Draw: 0.3 amps (average)
Approvals (Flashing): SAE Class I (ABW, RAW, RBW) available where applicable
*approvals only apply when properly configured

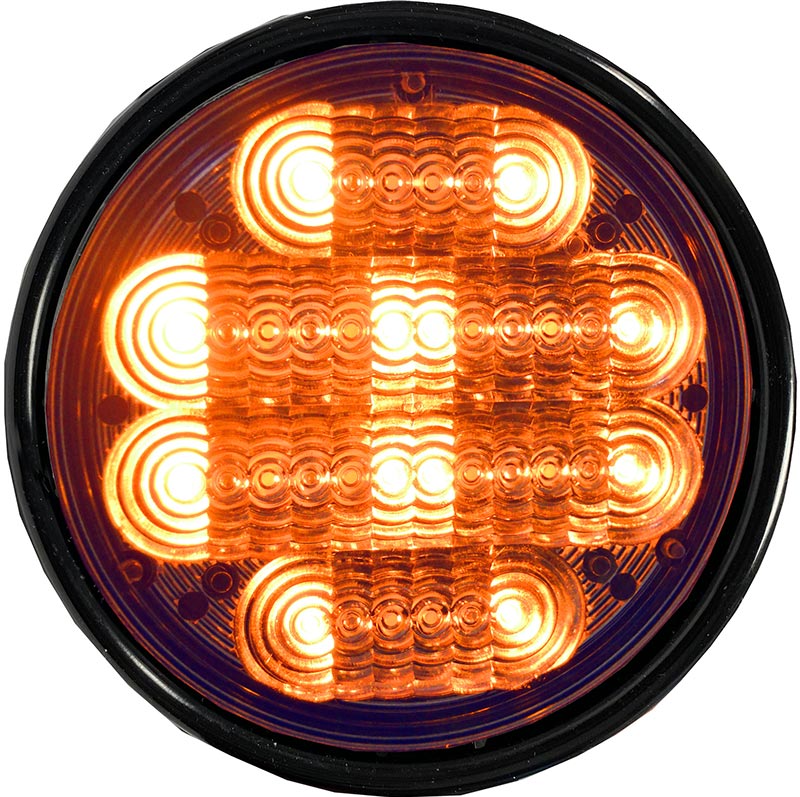

- DLXTRMC-1-*** - 4” Round black bezel, Tri-color thirty six array LED head

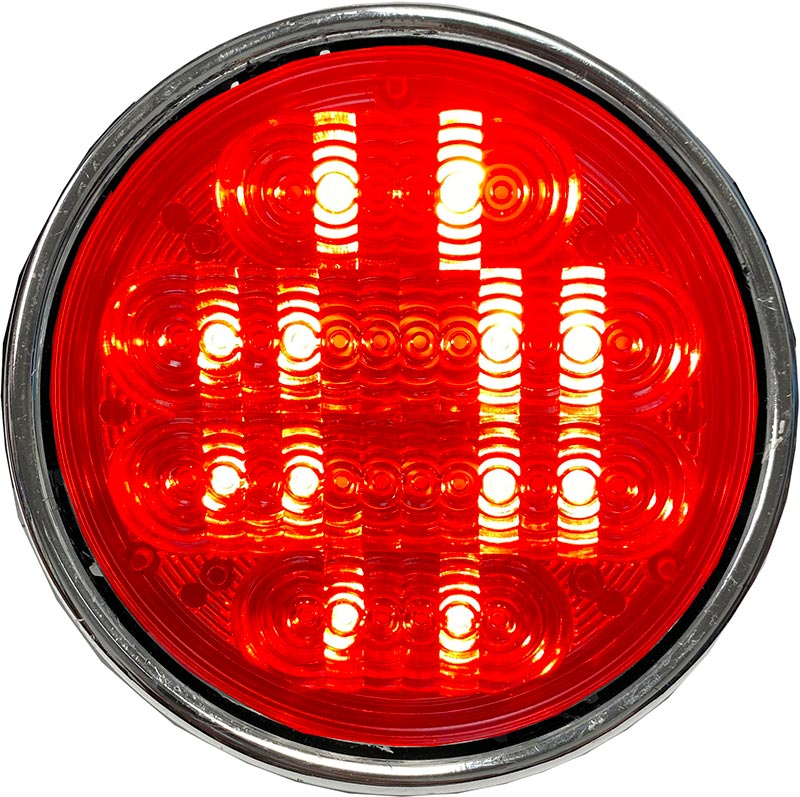

- DLXTRMC-1C-*** - 4” Round chrome bezel, Tri-color thirty six array LED head

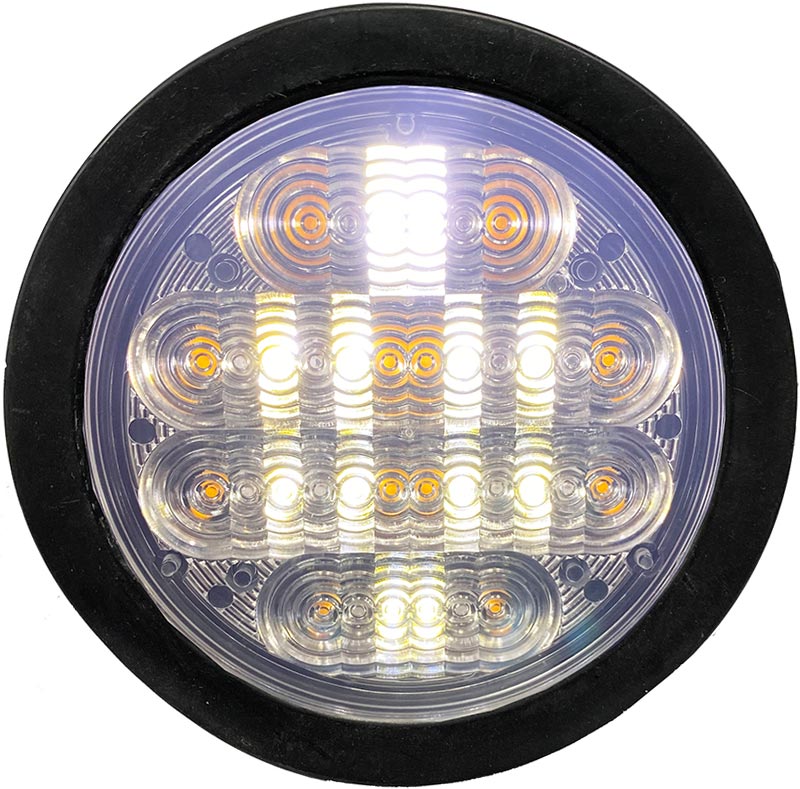

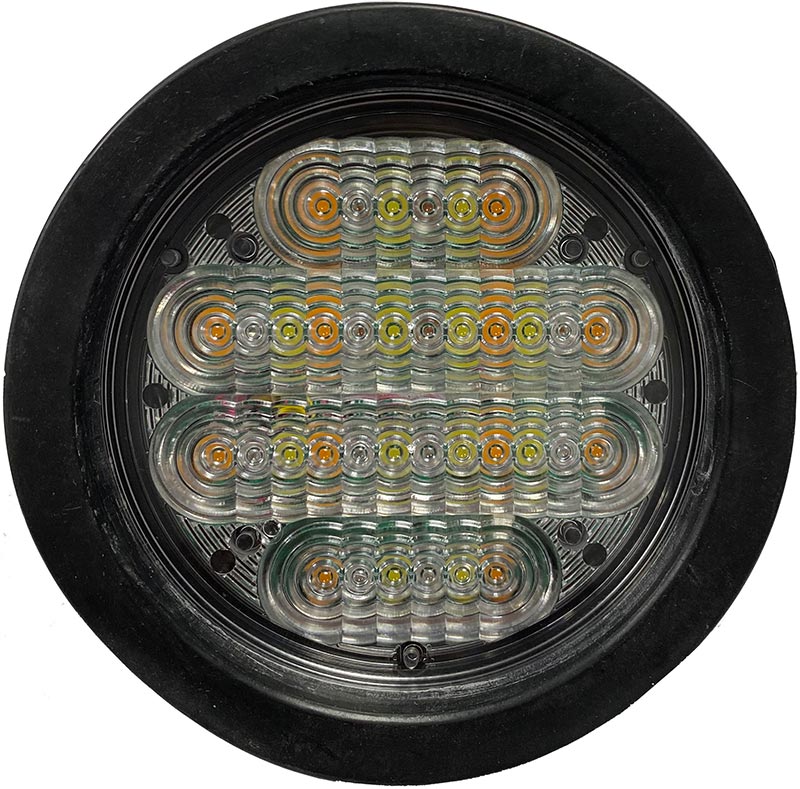

- DLXTRMC-4-*** - 4” Round black grommet, Tri-color thirty six array LED head

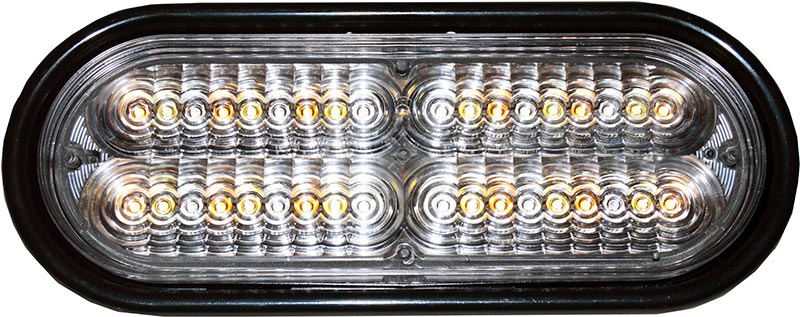

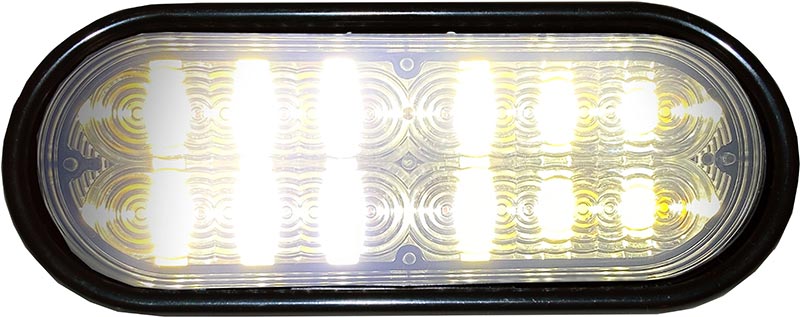

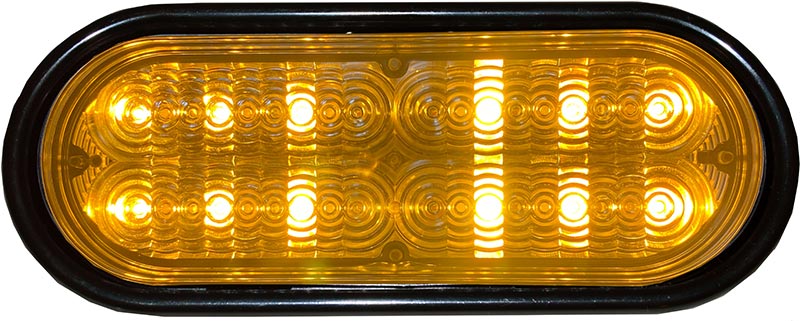

- DLXTUMC-1-*** - 6” Oval black bezel, Tri-color thirty six array LED head
- DLXTUMC-1C-*** - 6” Oval chrome bezel, Tri-color thirty six array LED head
- DLXTUMC-4-*** - 6” Oval black grommet, Tri-color thirty six array LED head
***= LED colors
