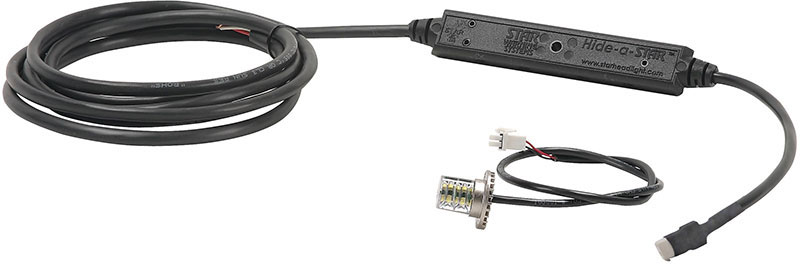

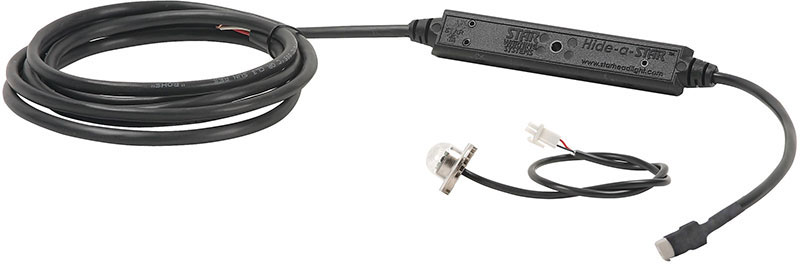

LED HIDE-A-STAR™ In-Line
Product Code: LDHF301, LDHF311
Zoom and Alternate Views
- Self-contained, LED flashing circuitry
- 12 different selectable flash patterns in either of two phases, plus steady-on
- S-Link System™ synchronizing capabilities with other Star LED units
- Spherical LED heads are designed with diffusing optic for extremely wide angle light
- Optics, boost and concentrate light for maximum LED output
- Easily replace standard hide-a-way remote strobe tubes with 1” mount holes
- Nickel plated aluminum housings allow for our advanced thermal heat management
- Customer changeable colored lenses (with white kit only), giving these LED lights versatility in the field
- Voltage: 12-24V DC
- Amp Draw: 0.5 amps per head (max)
See online catalog for Specifications list and Vehicle Mounting Specifications
- LDHF301-*-10
- LDHF311-*-10
- LDHF301-*-30
- LDHF311-*-30
Key:

10 - 10’ cable
30 - 30’ cable

Replacement Parts:

Replacement head with connector.......................SLDH300C-*
Spherical replacement head with connector........SLDH310C
Three color lens kit for spherical heads...............P30129-50K
Single color lens for spherical heads...................P30129-50*
Three color lens kit for directional heads............P30129-47K
Single color lens for directional..........................P30129-47-*
LDHF301 & LDHF311 In-Line Flasher with Hideaway Undercover LED Heads - Manual

LDF311-LDK302 Hide-A-Star Remote Flashing LED Kits - Product Flyer

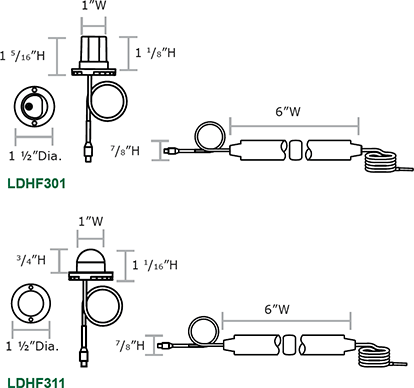

LED 301 HIDE-A-STAR™ In-Line Model Drawing

LED 311 HIDE-A-STAR™ In-Line Model Drawing
