ULB18, ULB28 Star Phantom® Lineum X™ Lightbars

STAR NEWS & EVENTS

Grote Industries Acquires Star Headlight & Lantern Co, Inc.

17-Apr-2023 - Grote Industries Acquires Star Headlight & Lantern Co, Inc.Acquisit...

  • ULB18, ULB28 Star Phantom® Lineum X™ Lightbars

    Product Code: ULB18, ULB28
    California P65 Cancer Warnging

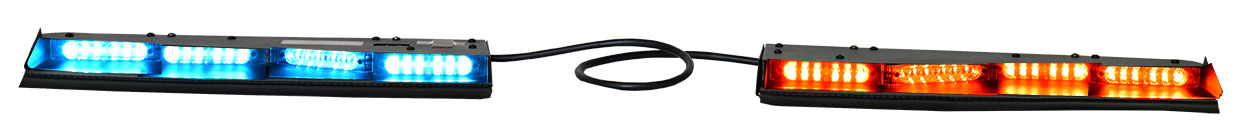

    ULB18, ULB28 Star Phantom® Lineum X™ Lightbars
    Zoom and Alternate Views
    • The New Lineum X™ technology offers a Dual-Color interior undercover bar
    • Extremely thin profile, for interior applications only
    • 31 customer selectable flash patterns, 5 phases (ex. AAAA BBBB vs. ABAB BABA), and 13 head enables: select which heads come on with which enable (Select two or ten takedown heads)
    • Low power dimming feature
    • Inputs: White flashing, Level 1, Level 2, Takedown, California steady Red, burst/dim/pattern

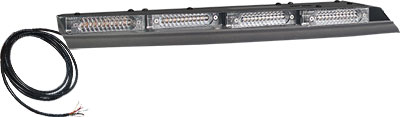

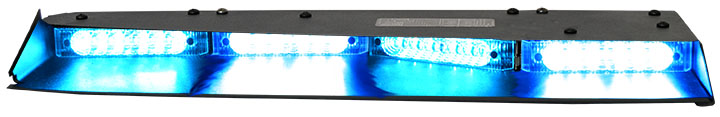

    • ULB18 has forty-eight high intensity Star Generation IV LEDs
    • ULB28 has ninety-six high intensity Star Generation IV LEDs
    • All White forward facing takedown/pursuit lights
    • Designed to mount in front windshield straddling overhead console
    • Limited to no drilling required with vehicle specific visor brackets
    • Installs in 10 to 15 minutes
    • 12’, eight conductor wire harness
    • Vehicle Specific models available


    Example:


    • Voltage: 10-16V DC
    •
    • Amp Draw:
      • ULB18 - 2.5 amps

      •
      • ULB28 - 5.25 amps



    ULB18 Vehicle Specific Mounting Brackets:

    • Chevy Caprice 2011-2017 - 274-ULB10-CP
    • Chevy Impala 2006-2013 - 274-ULB10-IM
    • Chevy Suburban 2007-2020 - 274-ULB10-TA
    • Chevy Suburban 2021 -  274-ULB10-TA21
    • Chevy Tahoe 2007-2020 - 274-ULB10-TA
    • Chevy Tahoe 2021 - 274-ULB10-TA21
    • Dodge Charger 2006-2010 - 274-ULB10-CH
    • Dodge Charger 2011 -2021 - 274-ULB10-CH11
    • Dodge Durango 2010-2021 - 274-ULB10-DU
    • Dodge Ram 2009-2021 - 1500, 2500, 3500 274-ULB10-RM
    • Ford Crown Victoria 2006-2011 - 274-ULB10-CV
    • Ford Expedition 2007-2013 - 274-ULB10-EX
    • Ford Explorer 2006-2019 - 274-ULB10-EX
    • Ford F-150 2004-2014 - 274-ULB10-EX
    • Ford F-150 2015- 2021 - 274-ULB10-F1
    • Ford Interceptor Sedan 2012-2021 - 274-ULB10-INT
    • Ford Interceptor SUV 2012-2020- 274-ULB10-EX
    • Universal mount - 274-ULB10-U1





    ULB28 Vehicle Specific Mounting Brackets:
    • Chevy Caprice 2011-2017 - 274-ULB21-CP
    • Chevy Impala 2006-2013 - 274-ULB21-IM
    • Chevy Suburban 2007-2020 - 274-ULB21-TA
    • Chevy Suburban 2021 - 274-ULB21-TA21
    • Chevy Tahoe 2007-2020 - 274-ULB21-TA
    • Chevy Tahoe 2021 - 274-ULB21-TA21
    • Dodge Charger 2006-2010- 274-ULB21-CH
    • Dodge Charger 2011-2021 - 274-ULB21-CH11
    • Dodge Durango 2010 2021 - 274-ULB21-DU
    • Dodge Ram 2009-2020 - 1500, 2500, 3500 274-ULB21-RM
    • Ford Crown Victoria 2006-2011 - 274-ULB21-CV
    • Ford Expedition 2007-2013 - 274-ULB21-EX
    • Ford Explorer 2006-2019 - 274-ULB21-EX
    • Ford Explorer (PI SUV) 2021 - 274-ULB21-EX20
    • Ford F-150 2004-2014 - 274-ULB21-EX
    • Ford F-150 2015-2021 - 274-ULB21-F1
    • Ford Interceptor Sedan 2012-2021 - 274-ULB21-INT
    • Ford Interceptor SUV 2012-2020 - 274-ULB21-EX
    • Universal mount - 274-ULB21-U1






    ULB28 Vehicle Specific Phantom

    • ULB28-FIS - 2018-2021 Ford Interceptor Sedan
    • ULB28-FISUV -2012-2021 Ford Interceptor SUV
    • ULB28-CH - 2015-2021 Dodge Charger


    See online catalog for Specifications list and Vehicle Mounting Specifications




    • ULB18
    • ULB28
    • ULB28-CH
    • ULB28-FISUV
    • ULB28-FIS
    Key:

    18 - Half-Phantom™
    28 - Split-Phantom™
    CH- Charger Vehicle
    FISUV - Ford SUV Vehicle
    FIS - Ford Sedan Vehicle

    Replacement Parts for ULB18:

    Bent end baffle (requires one per unit)..............S30147-151-2R
    Gasket................................................................P30047-169-18

    Replacement Parts for ULB28:

    Bent end baffle left............................................S30147-151-2L
    Bend end baffle right.........................................S30147-151-2R

    Replacement Parts for ULB28-CH:

    Gasket................................................................P30047-173-16
    Driver side Dodge Charger bracket...................P30150-431DP
    Passenger side Dodge Charger bracket.............P30150-431PP

    Replacement Parts for ULB28-FIS, FISUV:

    Gasket................................................................P30047-173-16
    Driver side Ford Int. Sedan bracket...................P30150-420DP
    Passenger side Ford Int. Sedan bracket..............P30150-420PP
    Driver side Ford Int. SUV bracket.....................P30150-424DP
    Passenger side Int. SUV bracket........................P30150-424PP
