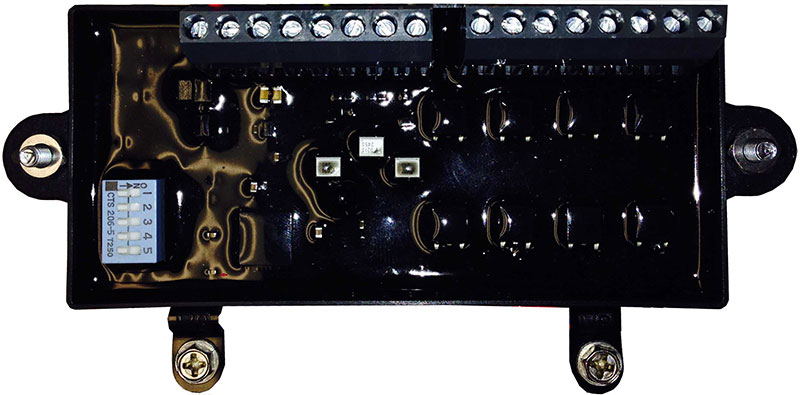

- The TDC-3 allows the user to save space in the console by enabling the director either with a light control siren or with switches. It is compatible
with most popular light control sirens in the industry
- Retro fit any “LED dummy” 6 or 8 head traffic director stick to operate with enable lines

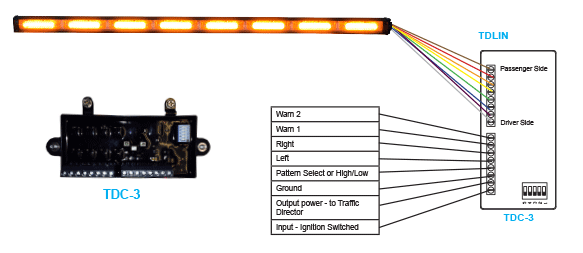

- Run as few as 4 wires from this box to the control unit
- 30 customer selectable warning flash patterns, 5 phases, and 13 head enable settings
- Clone: Duplicate settings for a fleet from 1 unit
- Option to flash outer LED’s with a 6 head traffic director
- Inputs: Left, Right, Level 1 warning, Level 2 warning, Pattern/Dim wire, Power, Ground
- Voltage: 10-32V DC (do not operate outside the voltage range your stick is rated for)
- Amp draw: Up to 2.5A per head, Standby amp draw: 0.0001A
- Compact unit (4.6” by 2.2”)
