Star X-Fire® technology
- Twelve different selectable flash patterns in either of two phases, plus Steady-On
- S-Link System™ synchronizing capabilities with other Star LED units hardwire only
- Extremely low current draw
- Durable polycarbonate, twist on/off lens

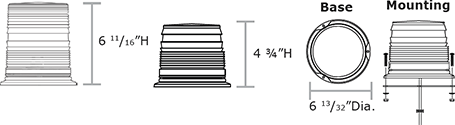

- Permanent mount options: Lightweight polycarbonate base with three-holed flange and 1" pipe mount or two-holed flange and 1" pipe mount

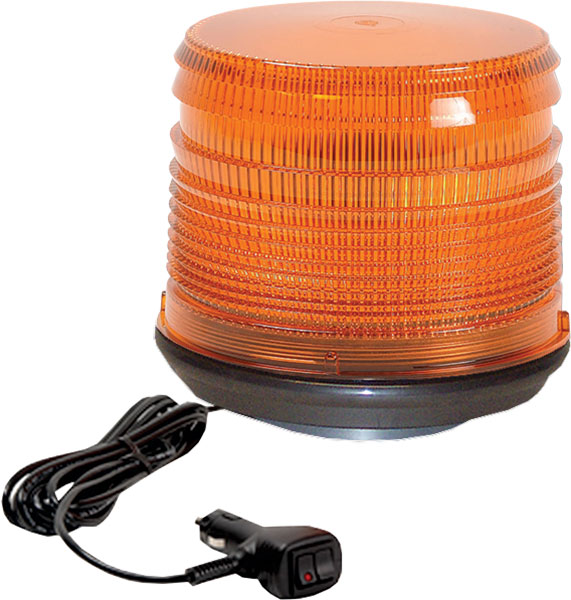

- Magnet mount options: Cig. plug (On/Off and Pattern Select) with either a standard magnet or vacuum magnet
- Voltage: permanent - Mount - 9-32V DC, mag. mount - 9-16V DC
- Amp Draw: 0.5 amps @ 12V DC, 0.3 amps @ 24V DC
- Approvals: Tall SAE Class I (A, AC, C, R) Short (A, AC, C) Tall SAE Class II (B) Short (B, R)

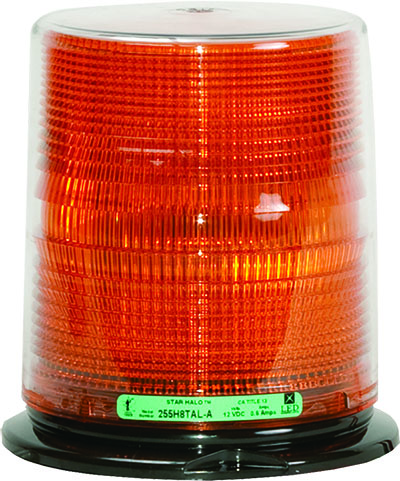

266TAL- Class I Title 13, tall lens, with clear dust cover, 1" pipe mount, three hole permanent mount

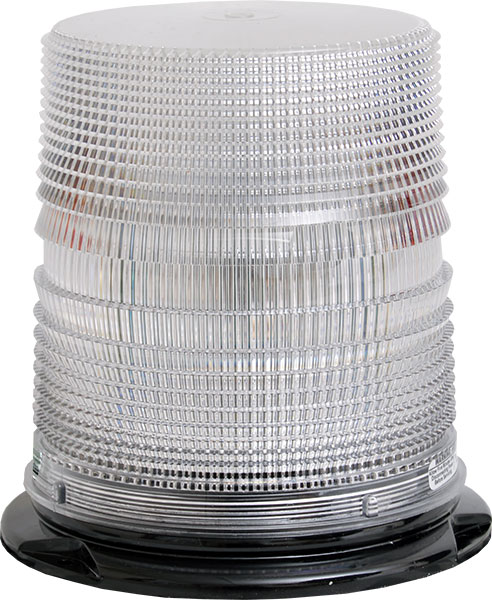

266TCL - Tall lens, 1" pipe mount, three hole permanent mount
266TCLM - Tall lens, magnet mount

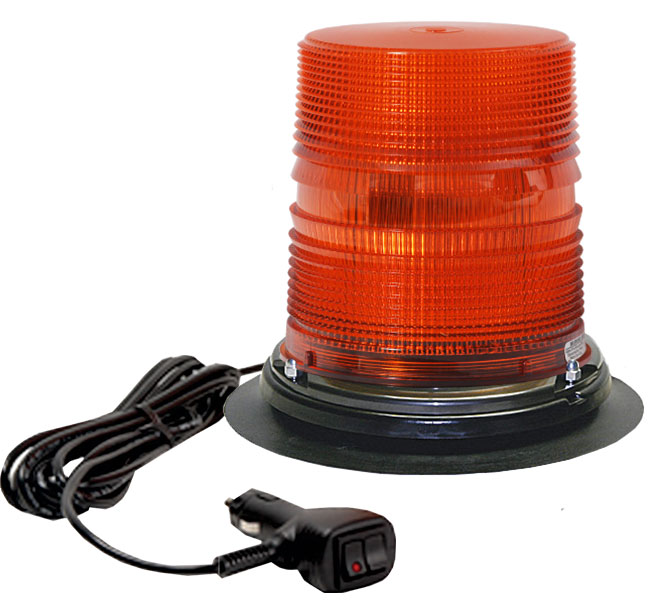

266TCLV - Tall lens, vacuum magnet mount

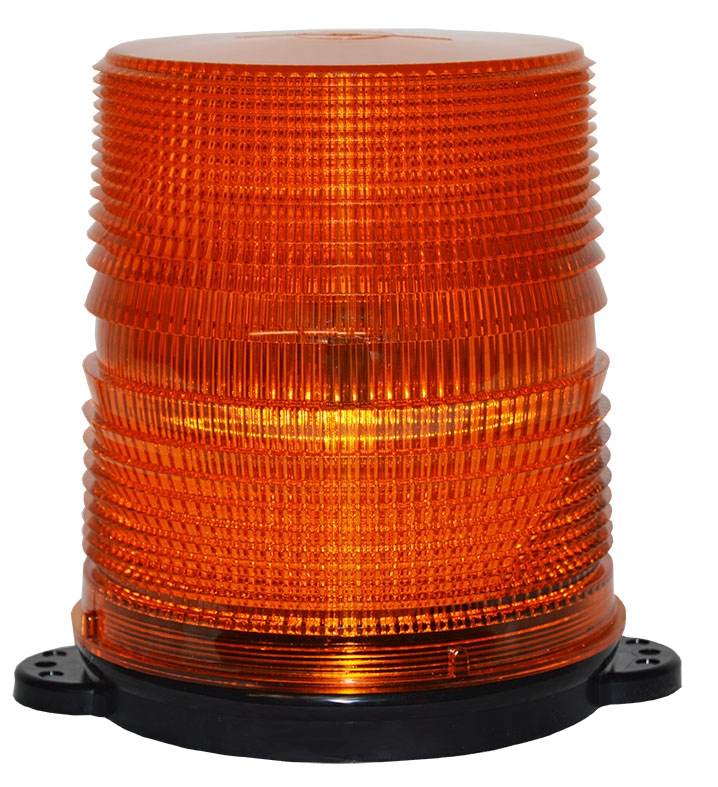

266TCFL - Tall lens, 1" pipe mount, flange base permanent mount
266TCLFL - Tall lens, less flange 1” pipe mount
266TASL- Class I Title 13, short lens, with clear dust cover, 1" pipe mount, three hole permanent mount

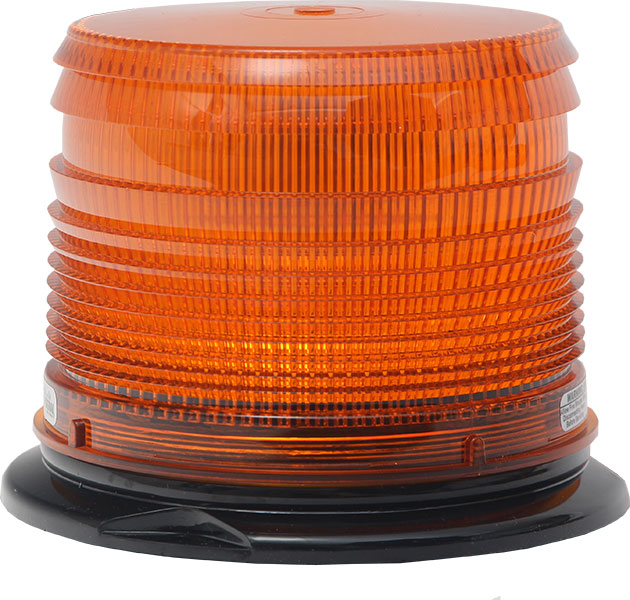

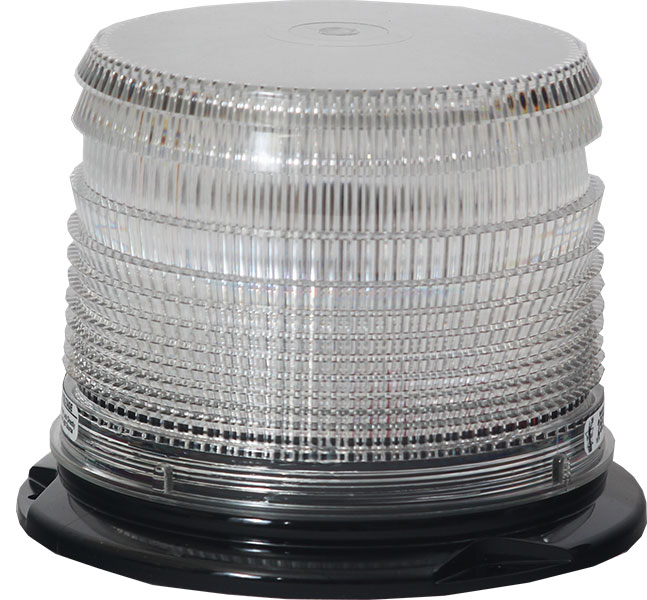

266TSL - Short lens, 1" pipe mount, three hole permanent mount
266TSLM - Short lens, magnet mount

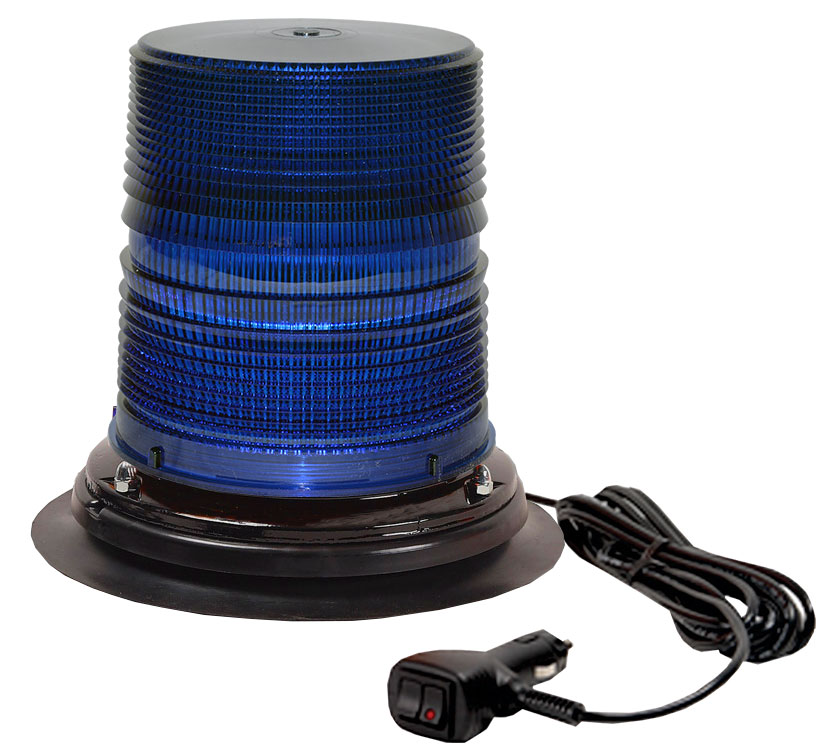

266TSLV - Short lens, vacuum magnet mount
266TSFL- Short lens, 1" pipe mount, flange base permanent mount
266TSLFL - Short lens, less flange 1” pipe mount
Replacement Parts:
Lens (266TCL)...................................................295TC-*
Lens (266TSL)...................................................297TS-*
Tall Lens with dust cover......................................295TA
Cig. plug with lighted on/off switch.....................920-PAT20LO-EDGE
Magnet kit.............................................................177-3
Vacuum magnet kit...............................................920-16V
O-ring gasket.......................................................30047-41
