ULB48-TD Star Phantom® Lineum X™ Traffic Directors
Product Code: ULB48-TD
Zoom and Alternate Views
- The New Lineum X™ technology offers a Dual-Color interior undercover bar
- One hundred-twenty, high intensity Star Generation IV LEDs
- Options to flash outer LEDs with 6 or 8 heads of Traffic Director
- 9 Traffic Director patterns
- Designed to mount in rear window (but could be used in front window)
- 12’, eight conductor wire harness
- 31 customer selectable flash patterns, 5 Phases, and 13 head enable settings
- User programmable head enable
- User programmable phase
- Clone settings between units
- Programmable cycling between warning and traffic director patterns
- Inputs: Left, Left + Right = center out, right, Level 1, Level 2, Amber Level 1, Dim/Pattern
Voltage: 10-16V DC

Amp Draw: ULB48 - 6.5 amps (average), 13 amps max

See online catalog for Specifications list and Vehicle Mounting Specifications
- ULB48-TD
Key:

TD - Traffic Director

Replacement Parts:

Mounting bracket kit for front/rear......................274-ULB42BKT
Impala rear mount kit...........................................274-ULB42-3
Chevy Silverado front mount kit..........................274-ULB42-4
Chevy Caprice rear mount kit..............................274-ULB42-5
Baffle...................................................................S30147-89
ULB48-TD Lineum Star Phantom Dual Color Undercover Interior LED Lightbar - Manual

ULB48-TD Traffic Director - Product Flyer

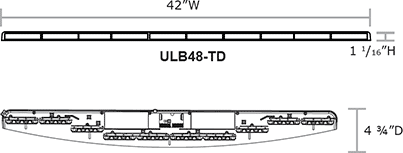

ULB48-TD Phantom Traffic Director Model Drawing

ULB48-TD
